Roller and Motor Bearings for this saw

The part number for the bearings for the rollerhead is 860154-00

They are available at DeWalt Service Net for $24.87 each:
http://www.dewaltservicenet.com/Products/PartDetails.aspx?partid=36097

The bearings for the motor can be found at Accurate Bearing

The part numbers are 88504 ($11.80 ea) and 88500 ($6.30 ea)

Call 1-800-323-6548 and ask for Lynne. After your first order with them you will have a customer number. Please have it available the next time you call Lynne as it makes her life a lot easier.

GW3 ready to go

Click on any image to see a larger version.

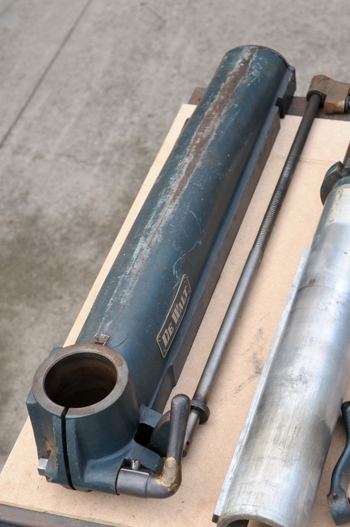

Arm and elevating mechanism. Check!

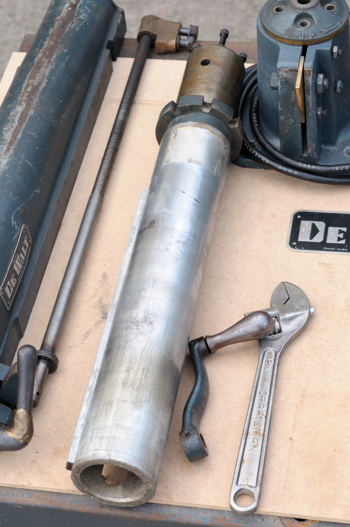

Column with hardware to mount thrust cap. Check!

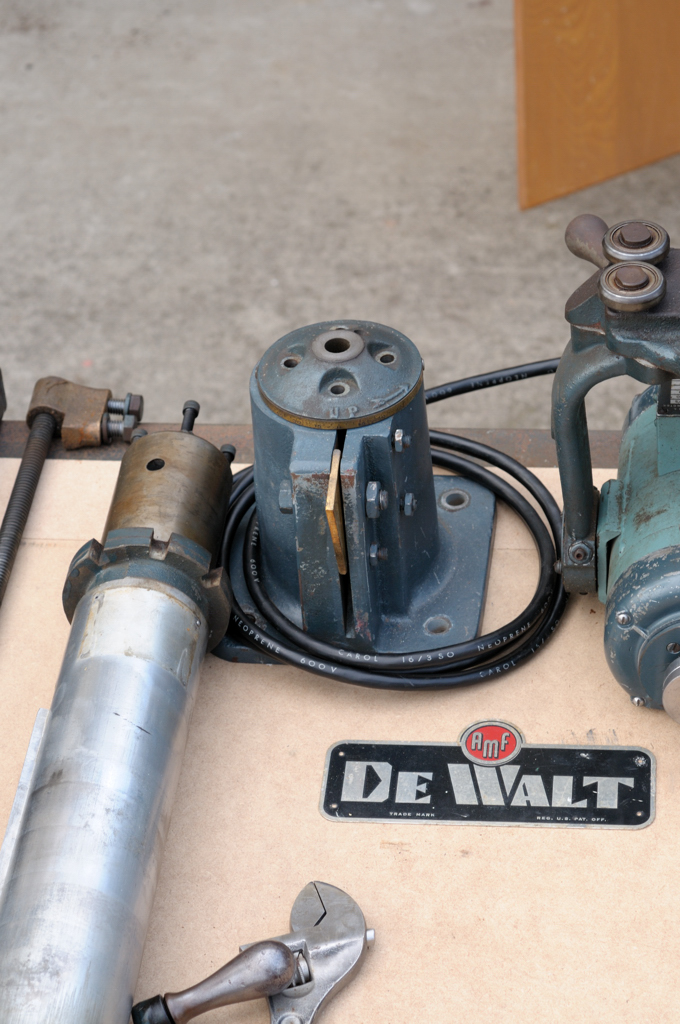

Column base with hardware and thrust cap. Check!

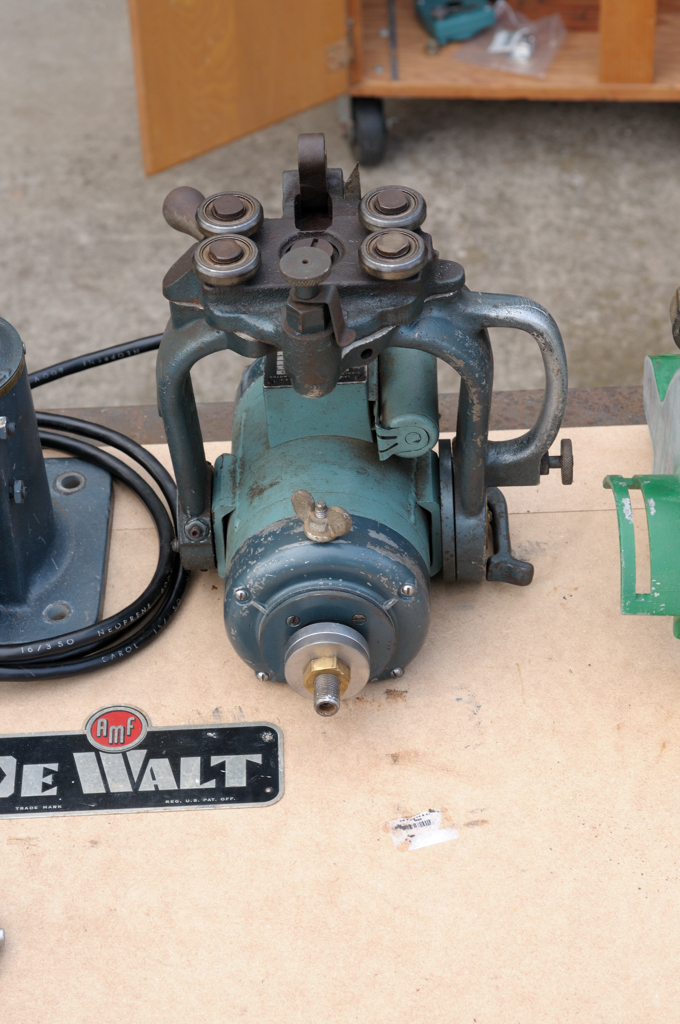

Motor and yoke/rollerhead assembly. Check!

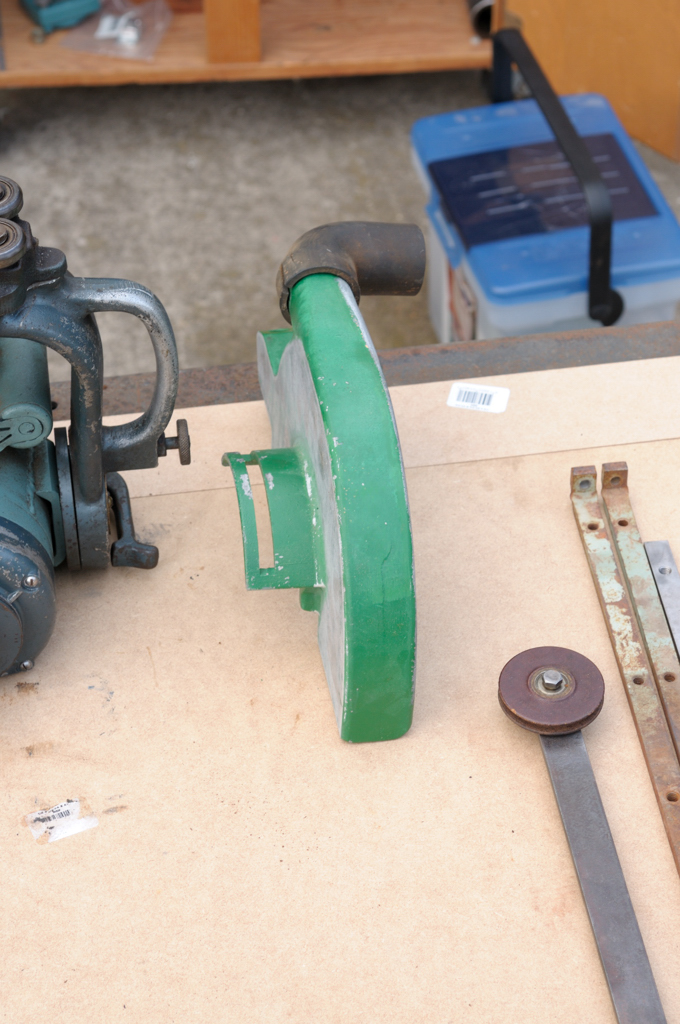

10" Blade Guard. Check!

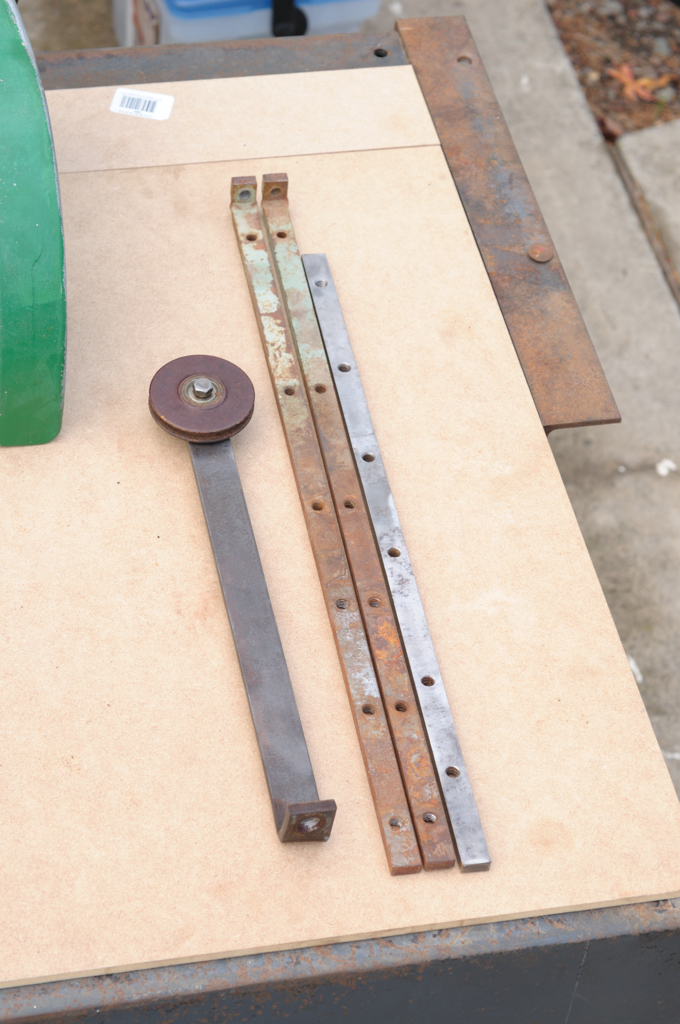

Table cleats and return cable roller. Check!

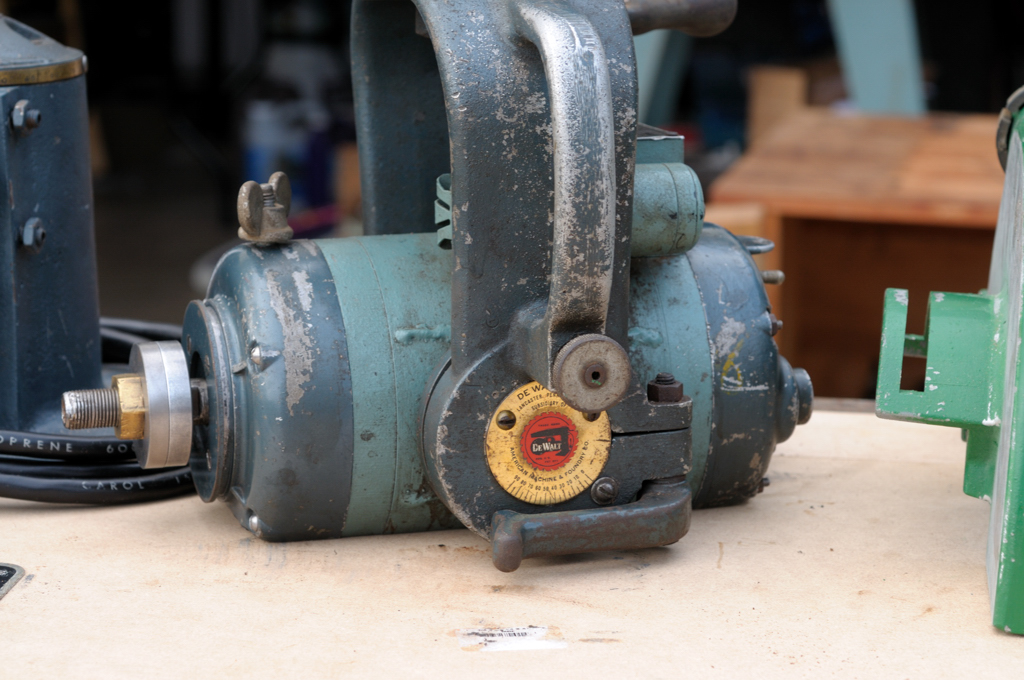

Side view of motor with brass badge. Check!

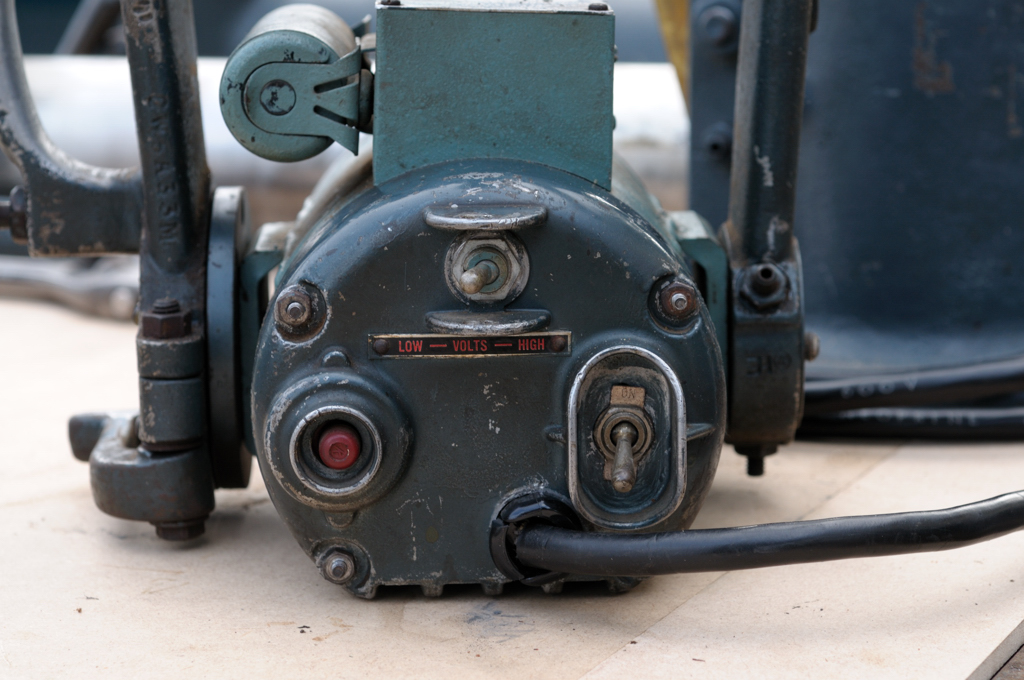

Rear view of motor showing voltage selector and power switch. Check!

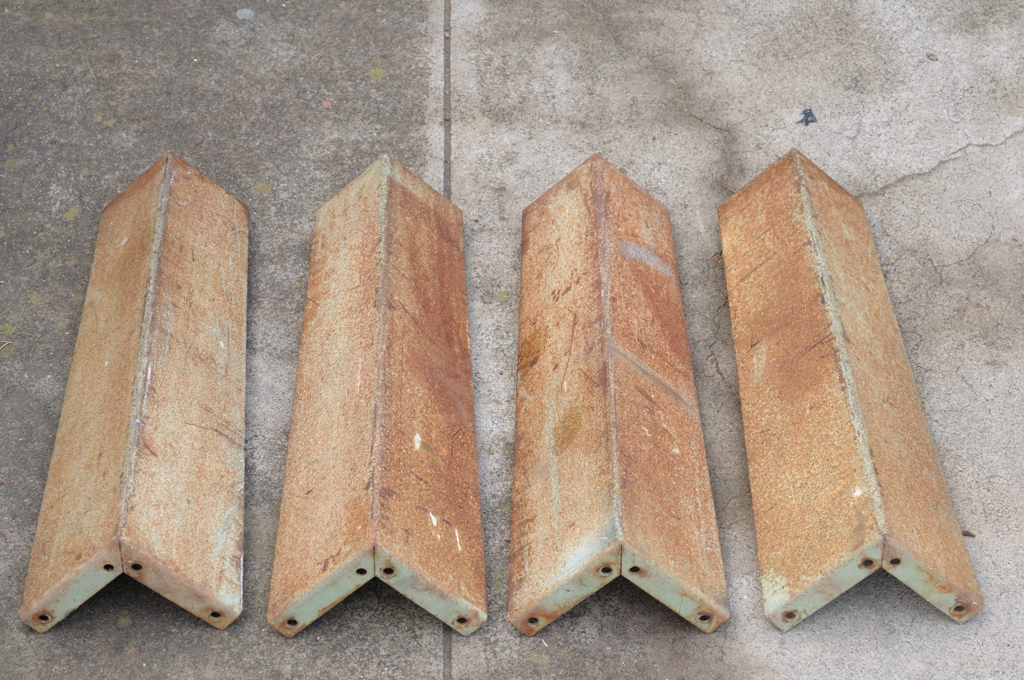

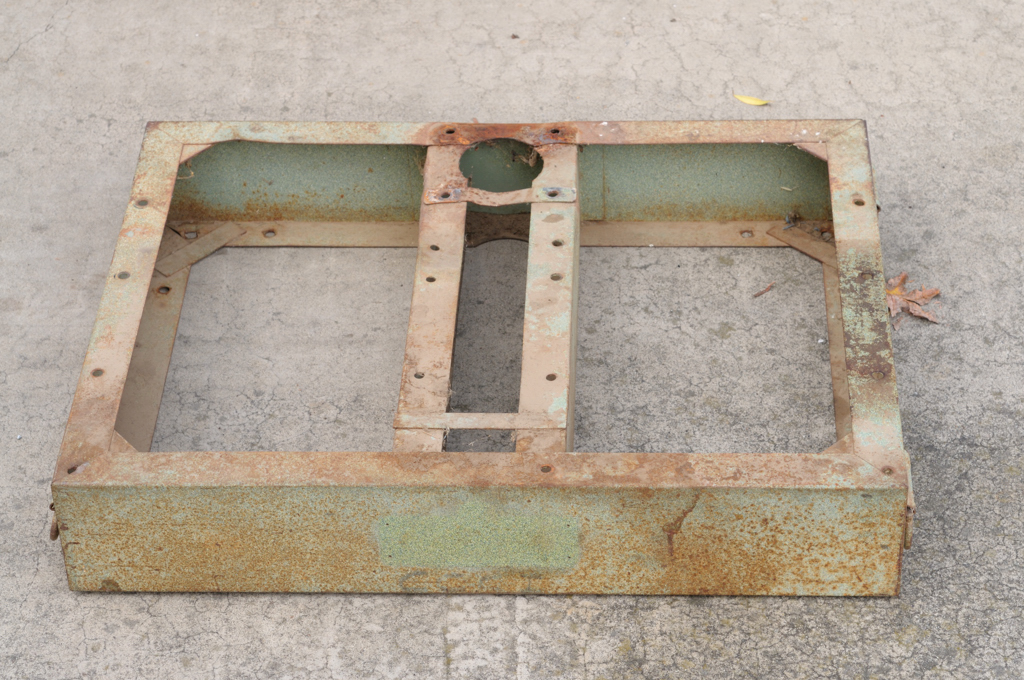

Legs, complete with surface rust. Check!

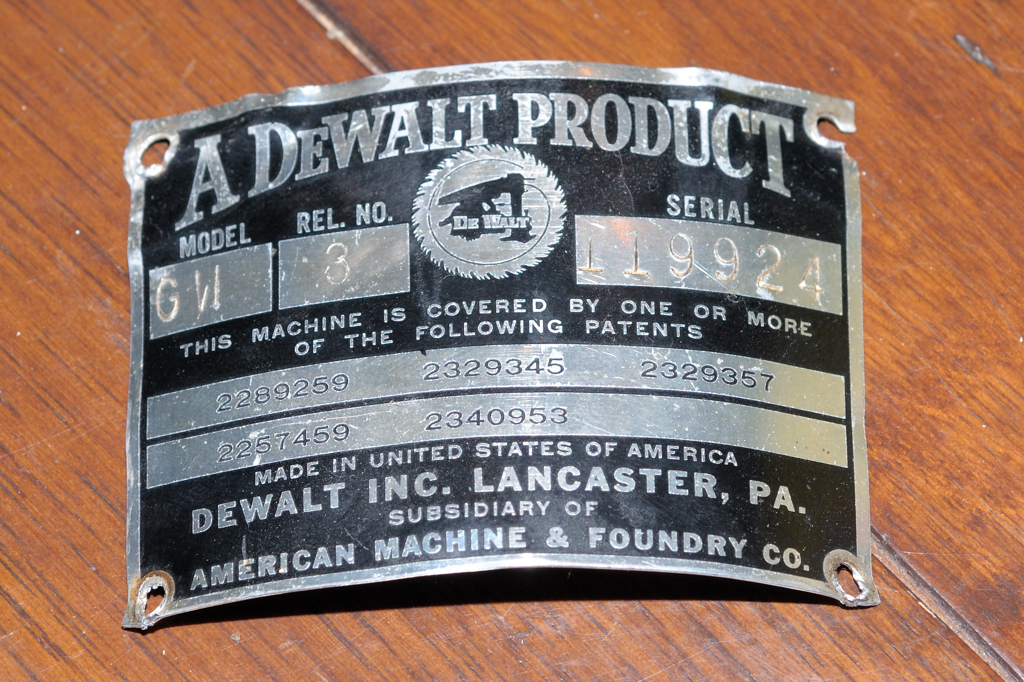

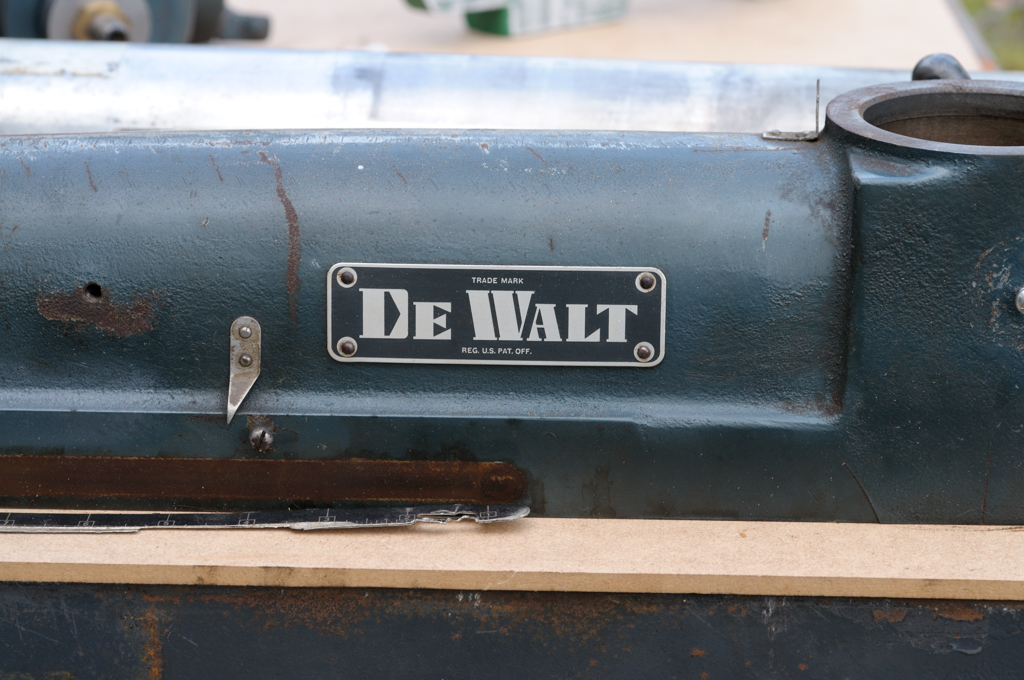

Vintage arm badge (in good shape). Check!

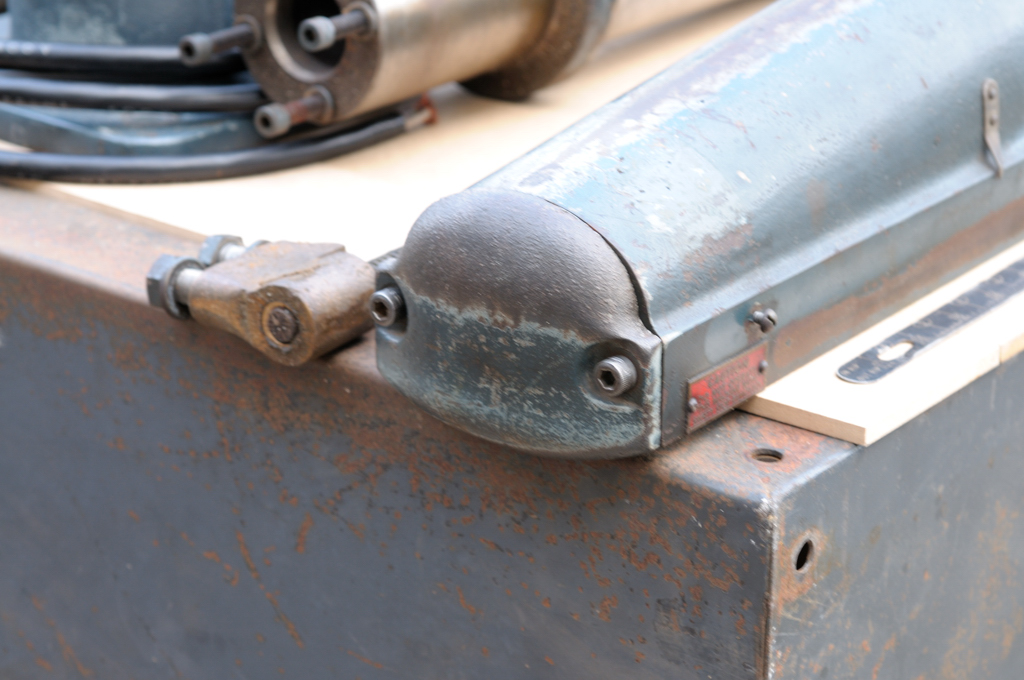

The end cap with hardware. Check!





Abused table. Checkmate!
